Solid float type PVC oil boom
Solid float type PVC oil boom is an economical and general type oil boom, which is used to intercept oil spills and other floating objects on the water surface, and is suitable for laying on the water surface. It can be used in water areas such as pools, lakes, rivers, harbors and platforms near the sea.
Product performance characteristics
Solid float type PVC oil boom、used in water pollution prevention、It is characterized by a solid flexible float on the upper part of the oil containment boom body、and a quick connecting end is fixed at both ends of the oil containment boom body、The height of the quick connection end is the same as that of the oil boom body、The end of the quick connection end head is provided with a connecting hook、and the end of the quick connection end head is provided with a baffle parallel to the connecting hook、When the two quick connecting ends are embedded in each other、the baffle plate parallel to the connecting hook can block the lateral movement of the connecting hook、The effect is that the connection between the two oil booms is faster and stronger、saving the time of connecting the two oil booms、In addition、the flexible solid float oil boom can be stored by the reel machine、reducing the storage space of the oil boom、At the same time、it does not need to be inflated when laying、so that the oil containment boom is laid quickly、This containment boom is especially suitable for emergency and rapid deployment.
Oil containment boom use

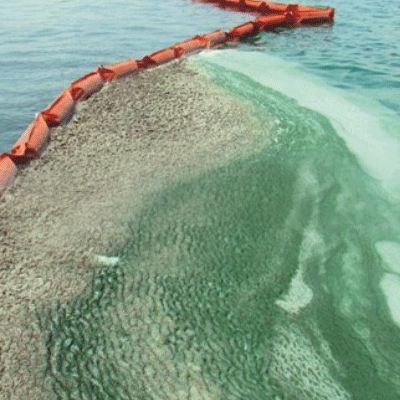

Surround the oil spill on the water surface to prevent the spread of the oil spill and buy time for the oil spill recovery.
Intercept the water surface oil spill、prevent the oil spill into a certain water area、reduce the pollution area、reduce pollution losses、divert the water surface oil spill、so that the oil spill to a suitable place for recovery.
Blockade oil tankers loading and unloading oil products at the port or old vessels dismantled on the shore to prevent oil products from polluting the port or coast in the event of an oil spill.
Used in conjunction with the oil recovery unit to collect oil spills and increase the thickness of oil film for oil spill recovery.
Features:
1、Good stress state、high overall strength、long service life.
2、Good posture in water、stable、strong oil retention ability.
3、Good wave riding、Easy to arrange.
4、Easy to clean and maintain.
Product parameter
Model number
PLGW600
PLGW750
PLGW800
PLGW900
PLGW1100
PLGW1500
Above water height (mm)
130
260
280
300
360
500
Underwater depth (mm)
380
390
390
480
560
750
Length per section (m)
10/20
20
20
20
20
20
Conditions of use
Pressure resistance (kN)
20
30
30
50
80
120
Wave height (m)
0.3
0.5
0.5
1
1.5
2
Wind speed (m/s)
8
10
10
15
20
20
Flow rate (Kn)
1
1.5
1.5
1.5
2
3
Weight (kg)
53
75
85
130
195
255
Package size per section (m)
long
1.0
1.1
1.3
1.6
1.9
wide
0.88
1.1
1.1
1.5
1.8
high
0.8
